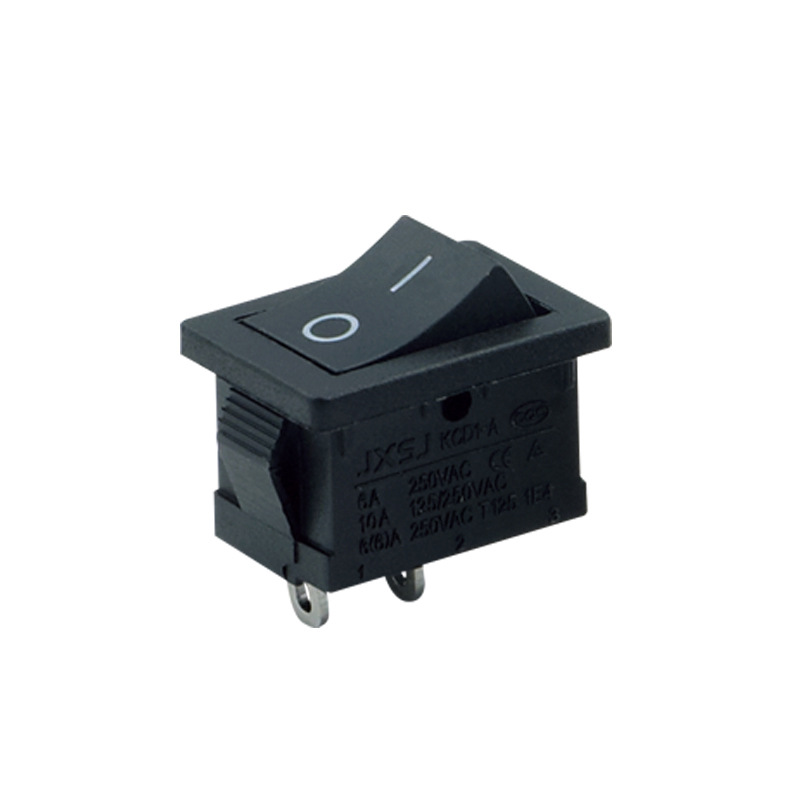

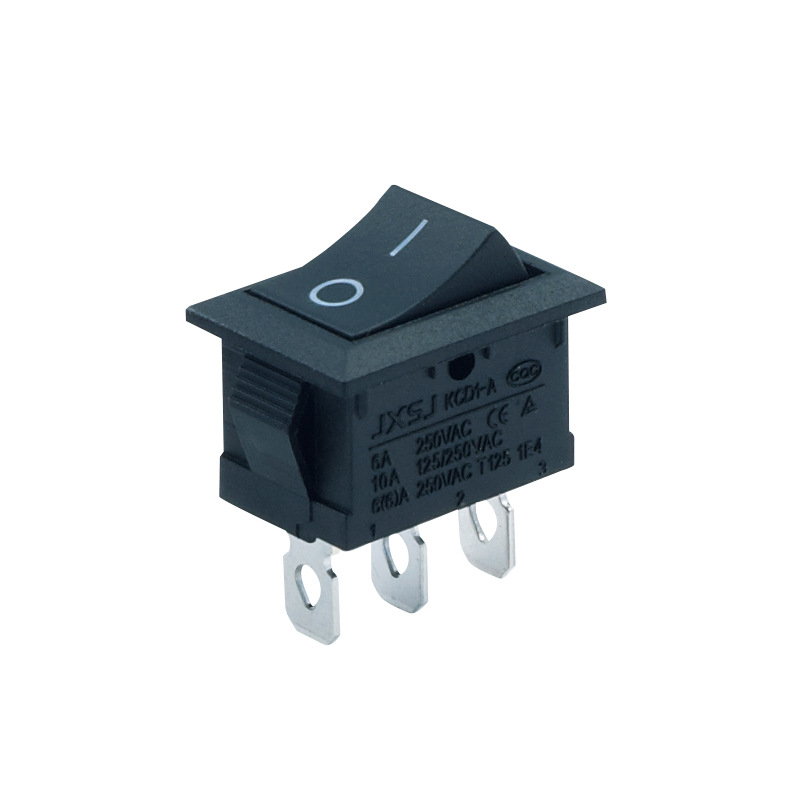

Waterproof boat-type rocker power switch with copper contacts, illuminated, 2-4 pole
Add to wishlist
Send to a friend
Logo print, custom packaging, colour... Usually from 500 units.
Minimum Order Quantity (MOQ): 2650
1 Euro pallet (120×80) = 32,640 pcs (32,640 cartons), $0.05 per unit, $1,739.81 in total. One container holds 24 pallets = 783,360 pcs.
Pallets are not stacked: a half pallet pays a full pallet space and freight. Full pallets lower your freight per unit.
In stock: 3,578,117 pcs
Preparation time: about 2 days after payment (shipping not included)
SKU: KZ-6U65WKK-01
🛡️ Product safety and manufacturer information
- Manufacturer
- Made in China; see EU responsible person.
- EU responsible person
- Kazel Eventagentur
Wilfried-Diekmann-Straße 20b 44536 Lünen
[email protected] - Product identifier
- SKU KZ-6U65WKK
- Safety warnings
- • Electrical component; disconnect power before installation and have it fitted by a qualified person. • Do not exceed rated voltage or operating limits; keep away from small children.
📏 Item Details (Single Unit)
- Weight
- 0.005 kg
📦 Carton / Logistics Info
- Units per Carton
- 1
- Carton Dimensions
- 7.50 x 4.00 x 2.00 cm
- Carton Weight
- 0.010 kg
- CBM
- 0.0001 m³
- Carton size and weight are estimated from similar products; freight is confirmed with the order.
Freight and customs costs are calculated automatically at checkout based on the total CBM/weight of your cart.
🔧 Technical Specifications
- Rated Voltage
- 0-250
- Brand
- JXSJ
- Protection Function
- Flame Retardant
- Electrical Life
- 10,000 times
- Withstand Voltage
- 1500
- Application Range
- Household Appliances
- Operating Temperature
- -28~85℃
- Contact Resistance
- ≤50
- Insulation Resistance
- ≥100
- Housing Material
- PA66
- Wiring Method
- Plug-in Terminal/Soldering
- Installation Dimensions
- 9*13.8
- Product Certification
- IEC,KC,ce,TUV,ISO,CQC,UL,ROHS,CB
- Mechanical Life
- 10,000 times
- Warranty
- 1 year
- Protection Rating
- IP20
- Rated Current
- 3/10
- Exclusively for Export
- No
- 3C Rated Voltage Range
- Below 250V
- Nominal gerilim
- 0-250
- marka
- JXSJ
- Koruyucu fonksiyon
- Alev geciktirici
- Elektriksel ömür
- 10.000 kez
- Dayanım gerilimi
- 1500
- Uygulama kapsamı
- Ev aletleri
- Çalışma sıcaklığı
- -28~85℃
- kontak direnci
- ≤50
- Yalıtım direnci
- ≥100
- Kabuk malzemesi
- PA66
- Kablolama yöntemi
- Fiş terminali/kaynak
- Kurulum boyutu
- 9*13.8
- Ürün sertifikasyonu
- IEC,KC,ce,TUV,ISO,CQC,UL,ROHS,CB
- Mekanik ömür
- 10.000 kez
- Garanti
- 1 yıl
- Koruma derecesi
- IP20
- Nominal akım
- 3/10
- Sadece dış ticaret için mi?
- Hayır
- 3C nominal gerilim aralığı
- 250V'un altında

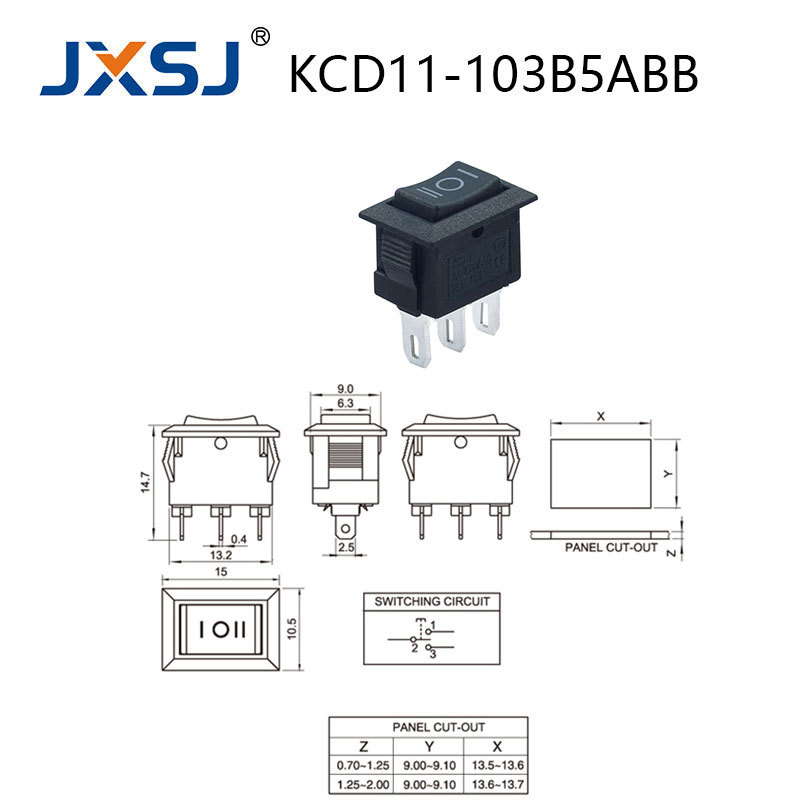

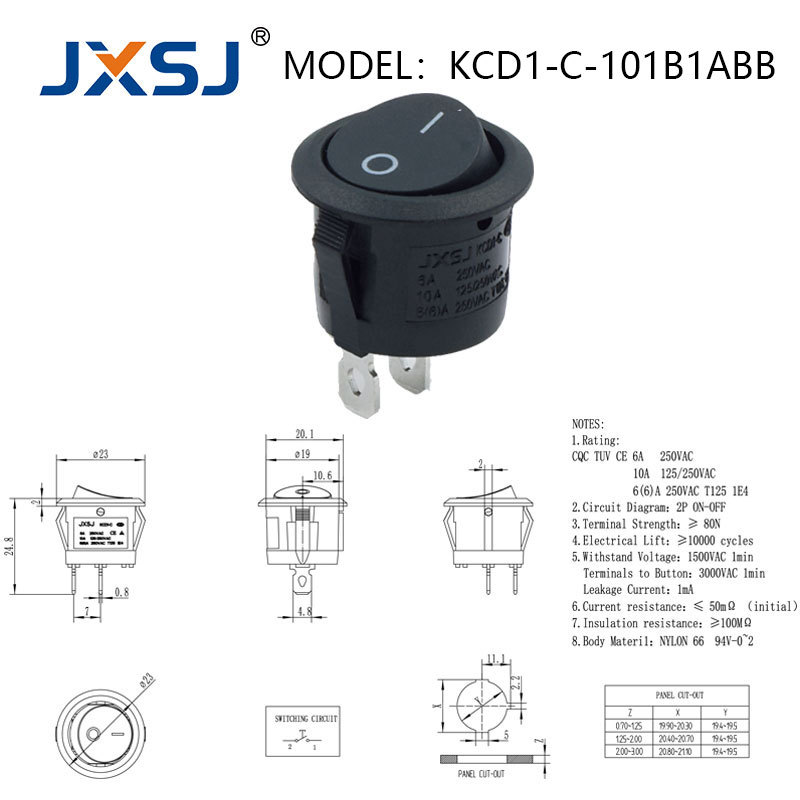

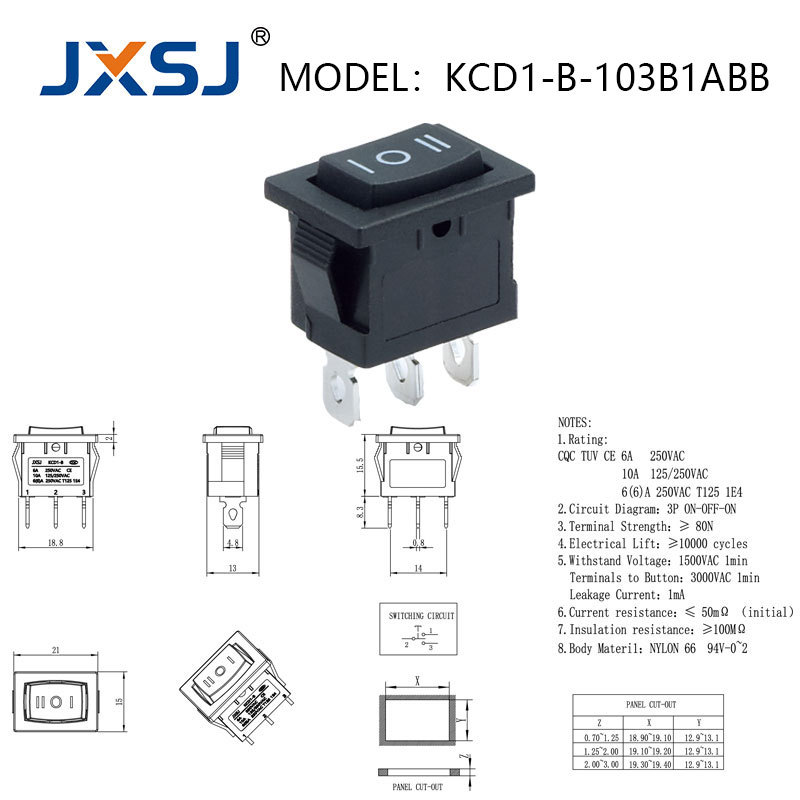

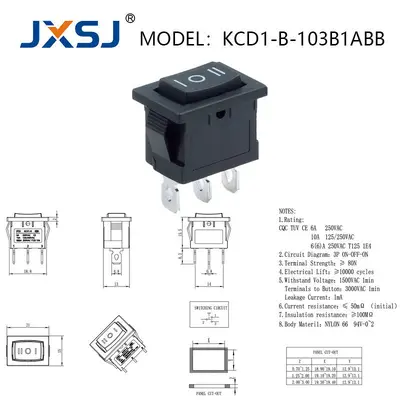

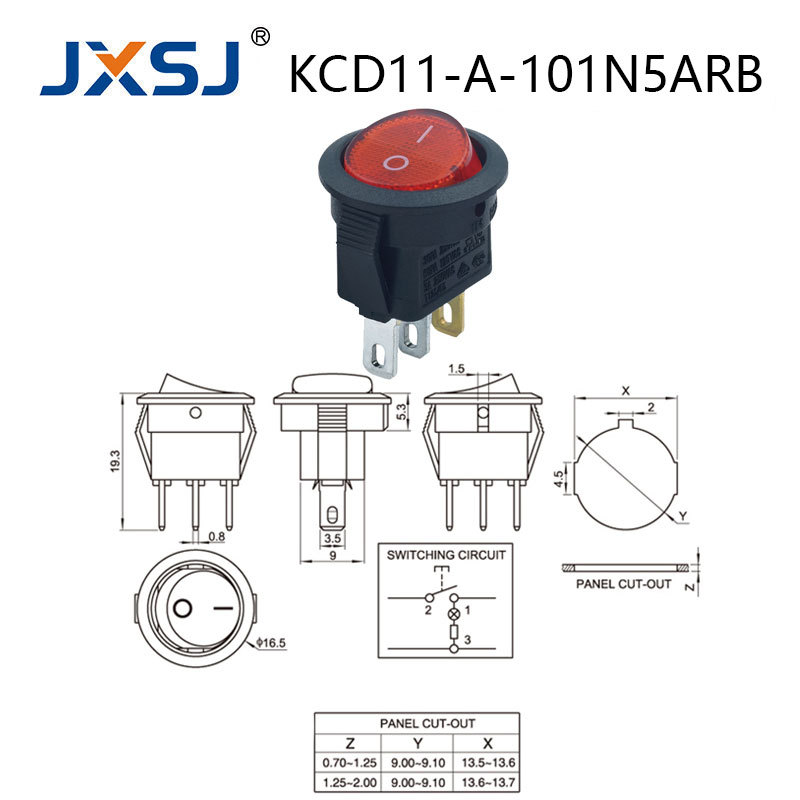

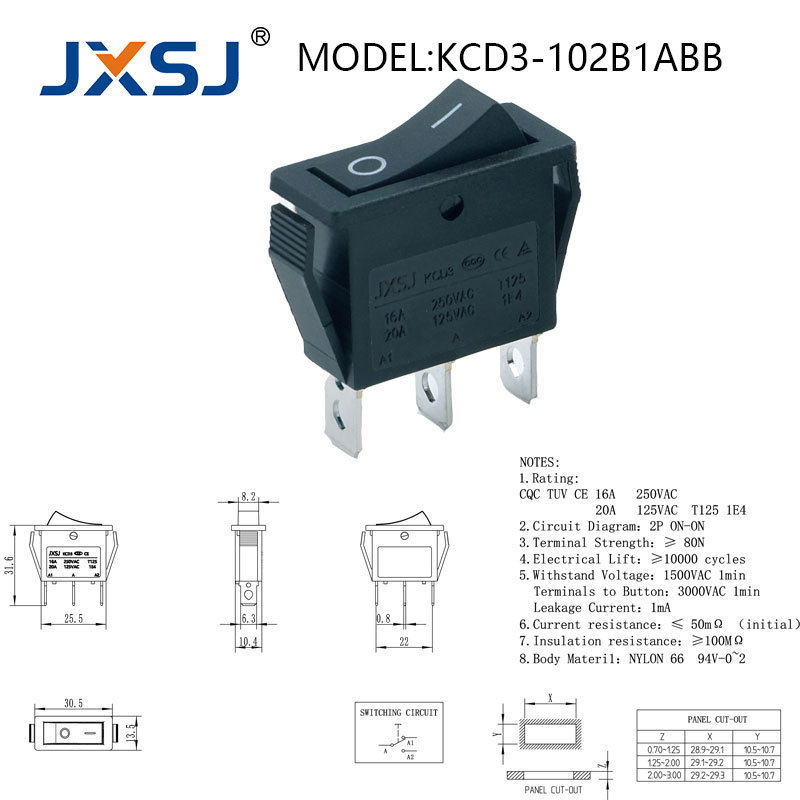

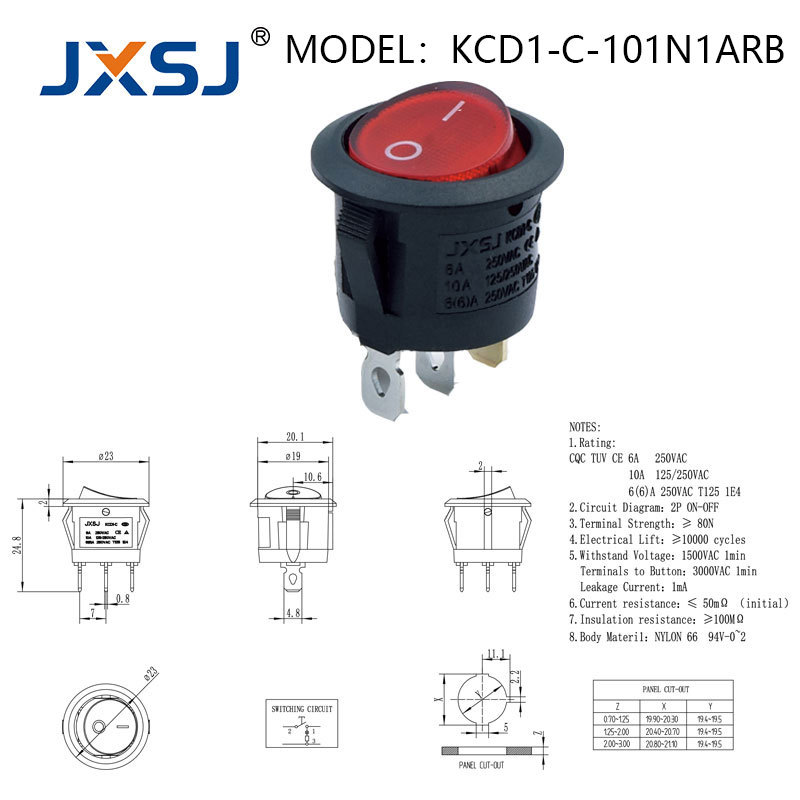

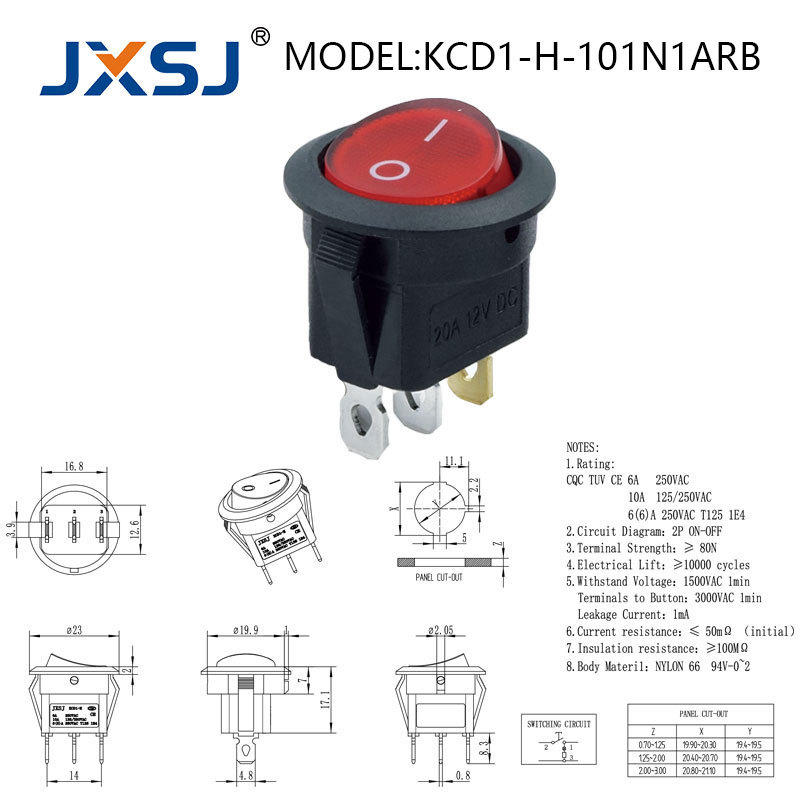

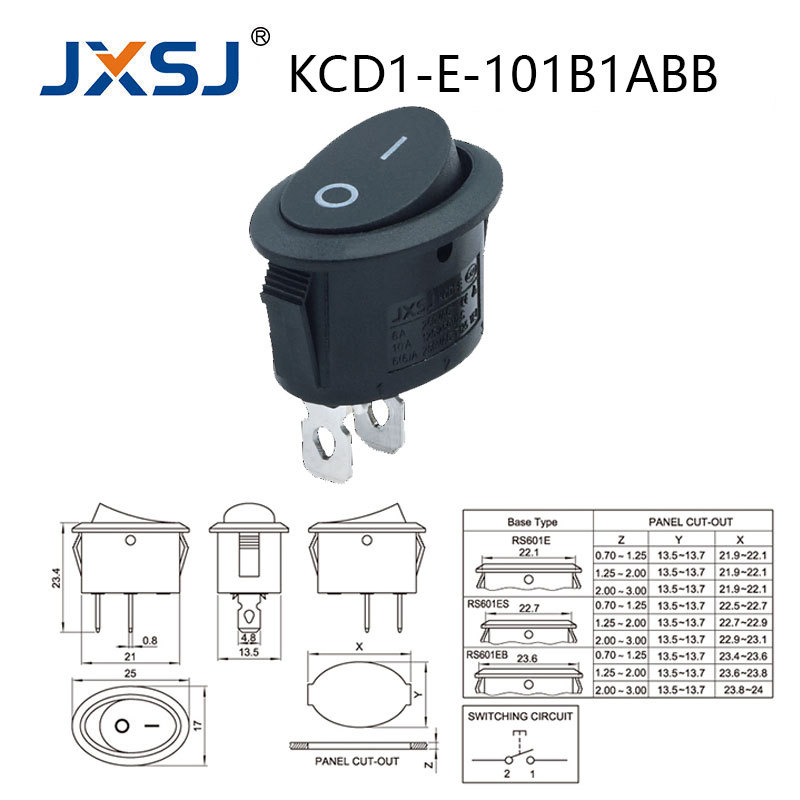

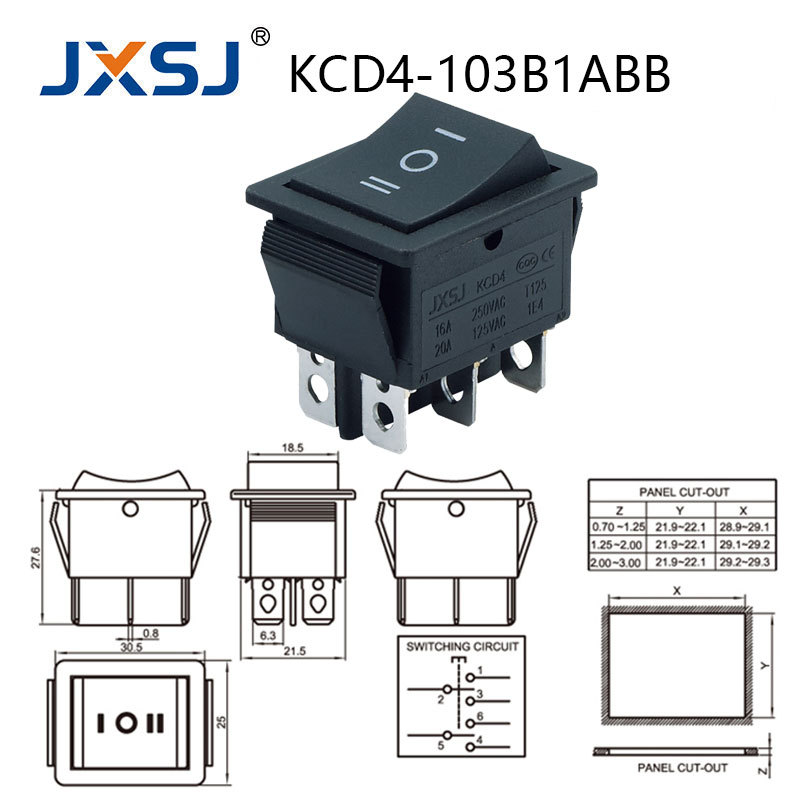

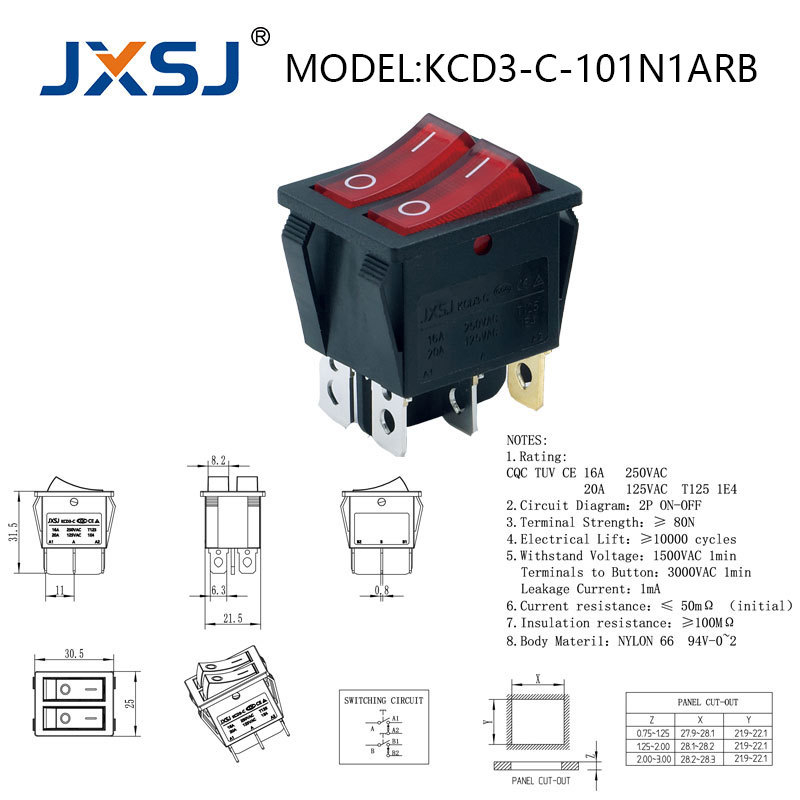

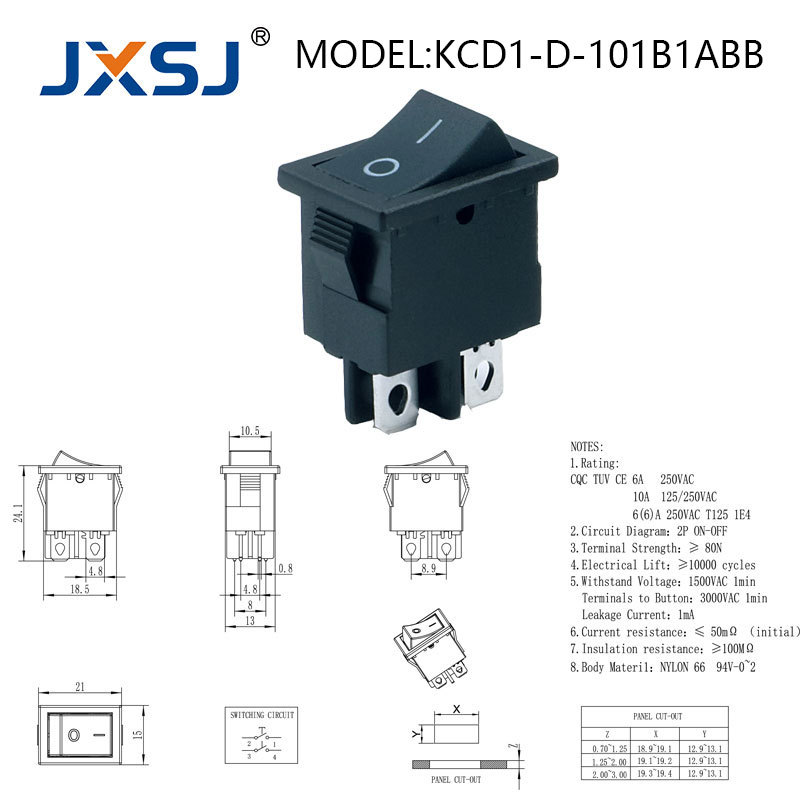

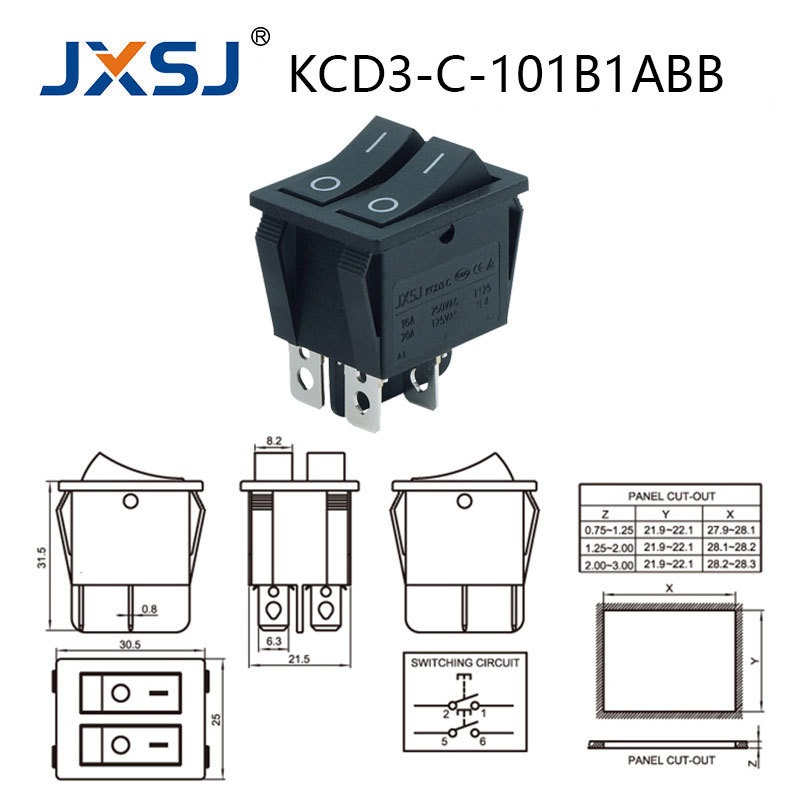

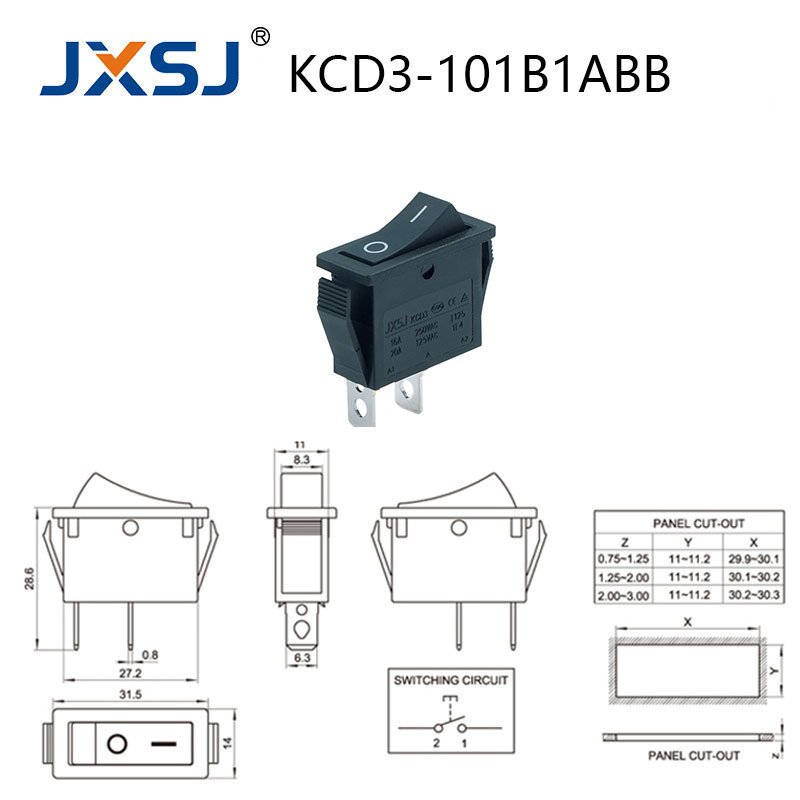

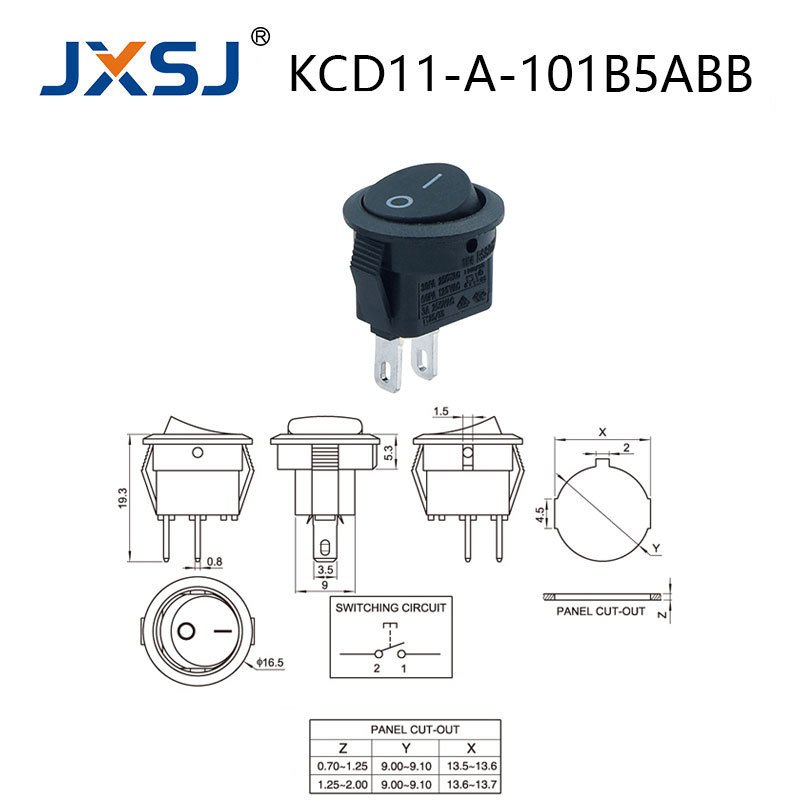

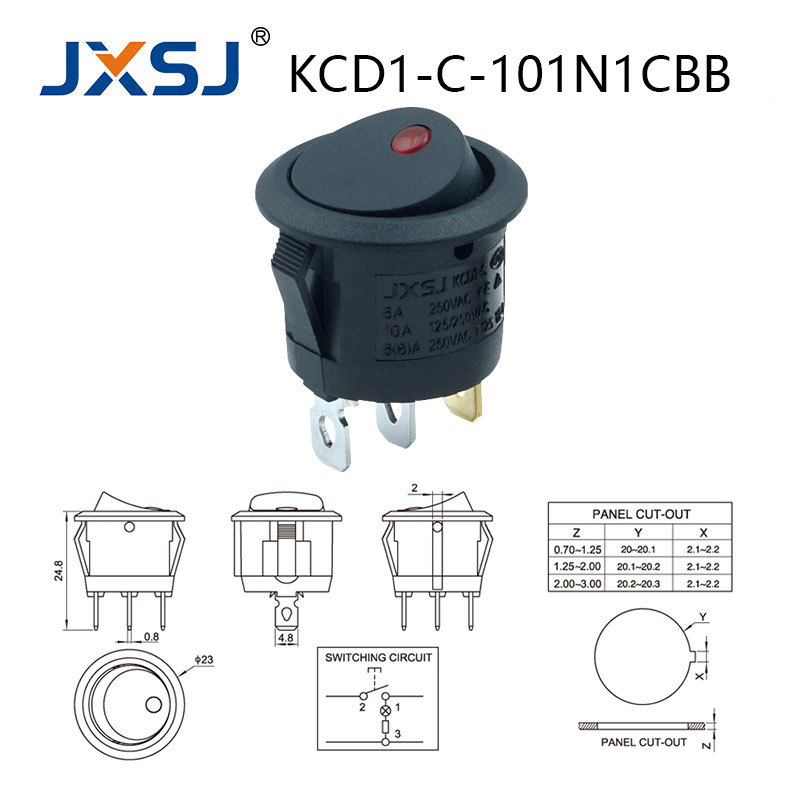

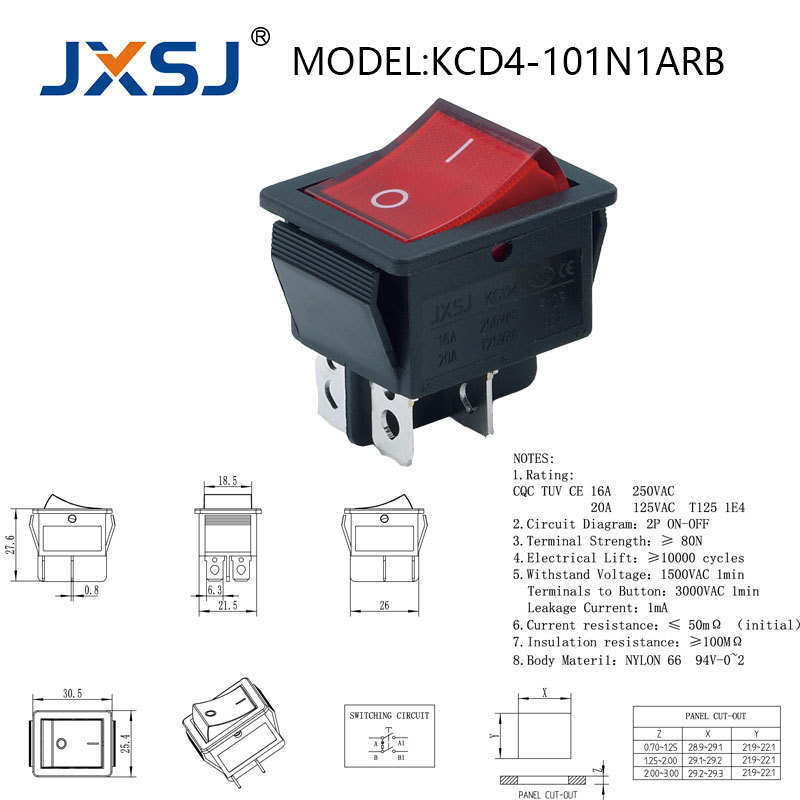

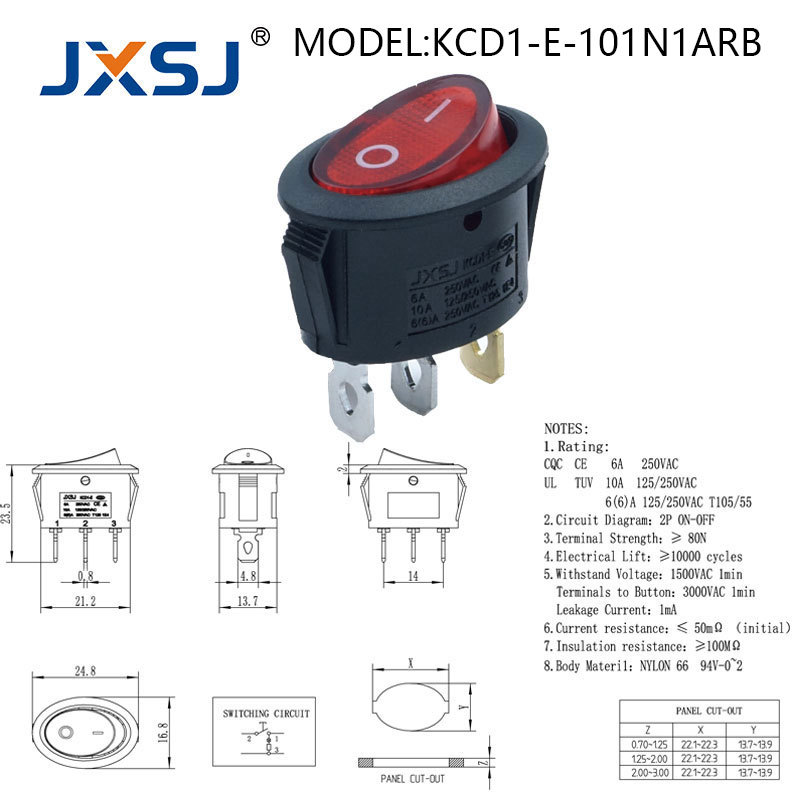

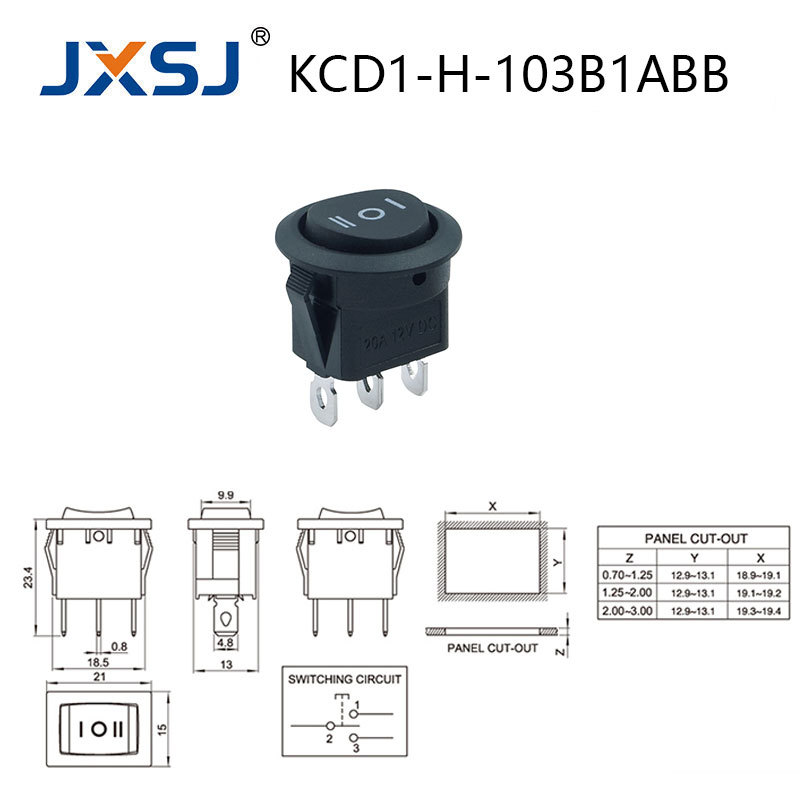

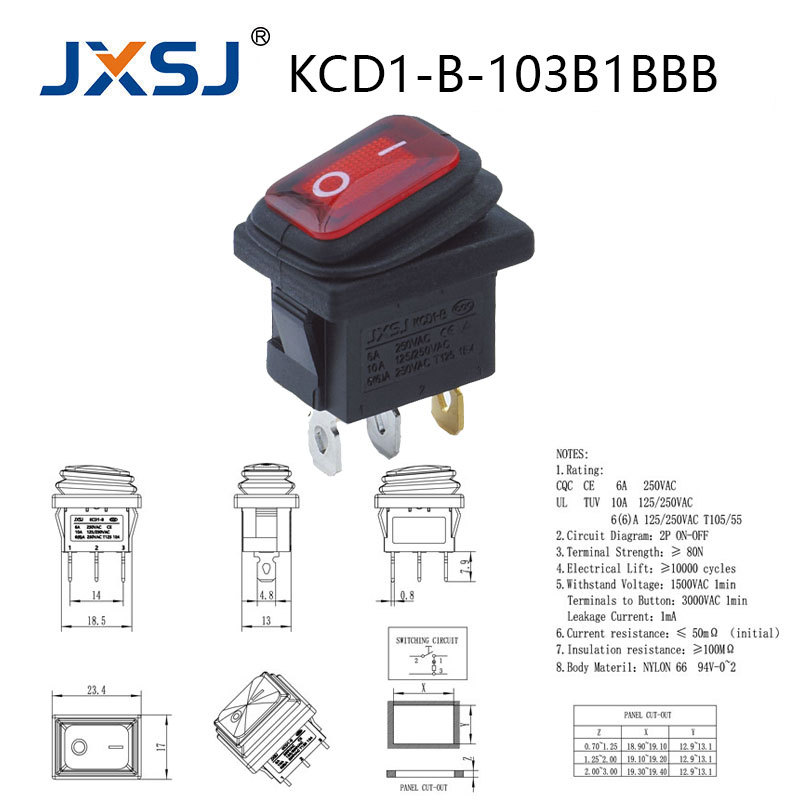

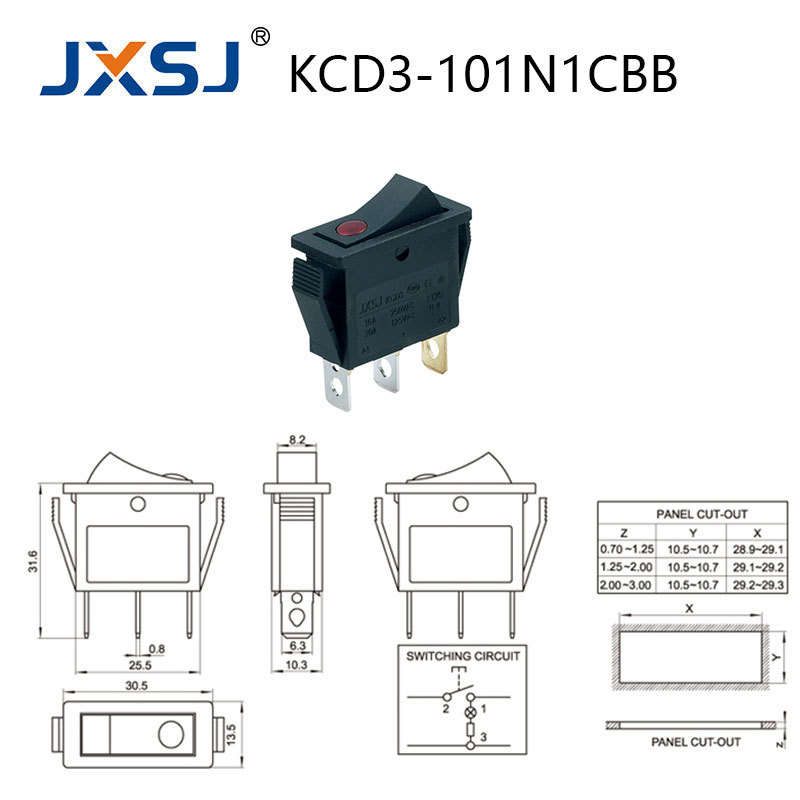

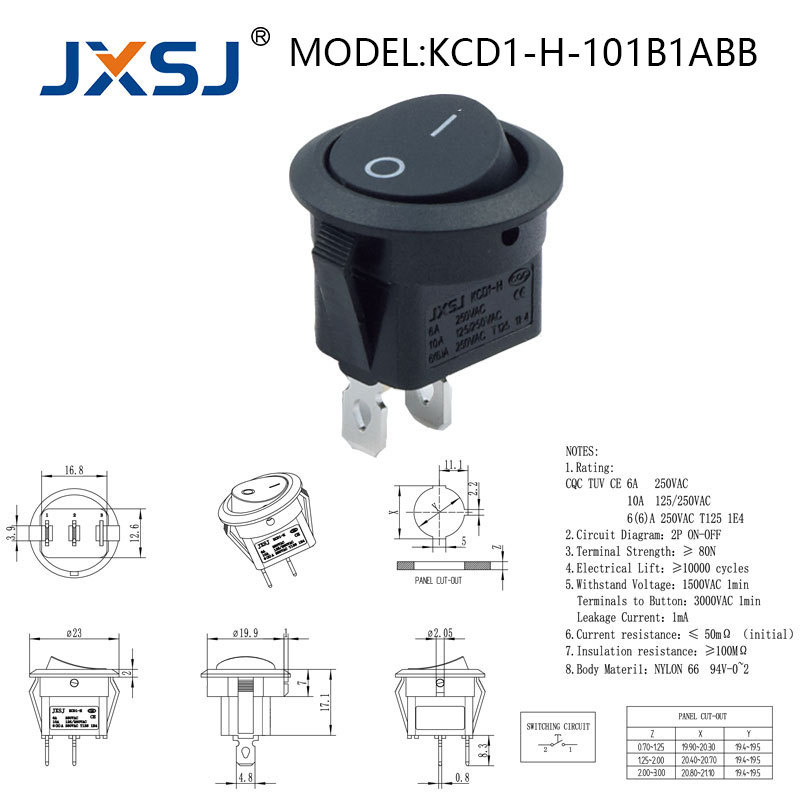

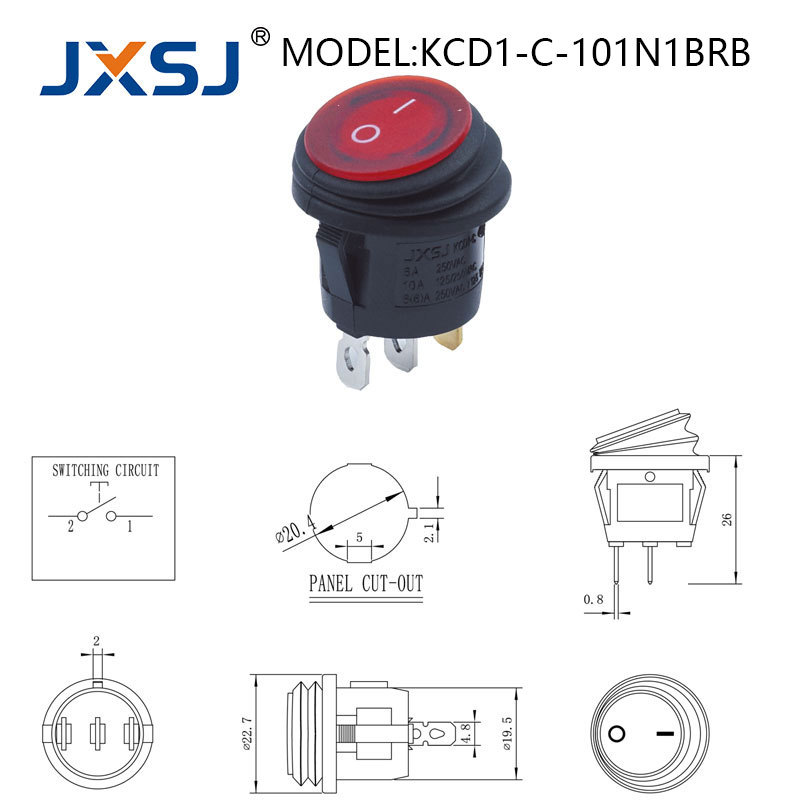

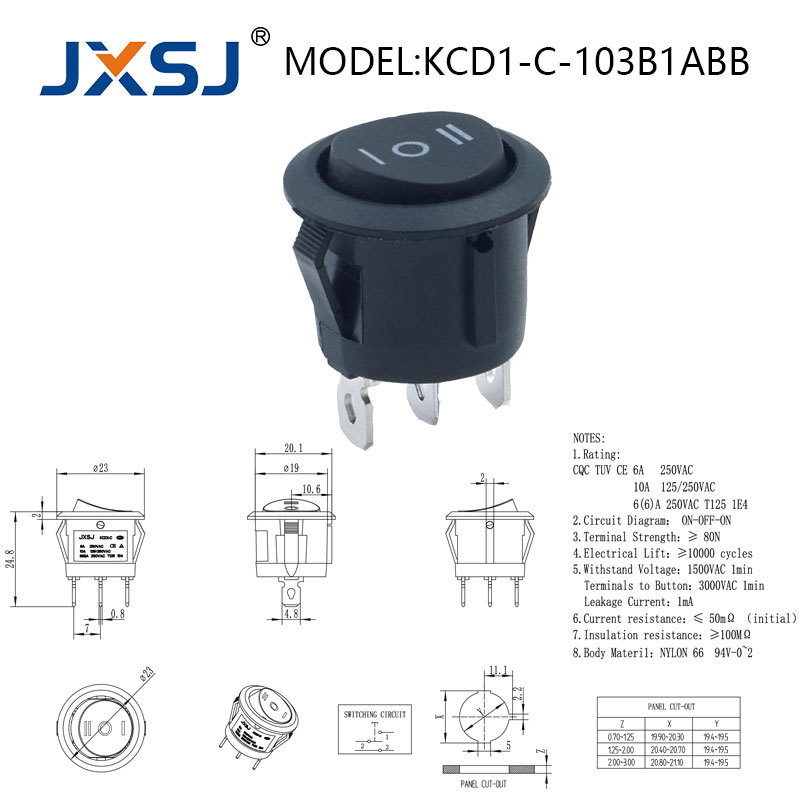

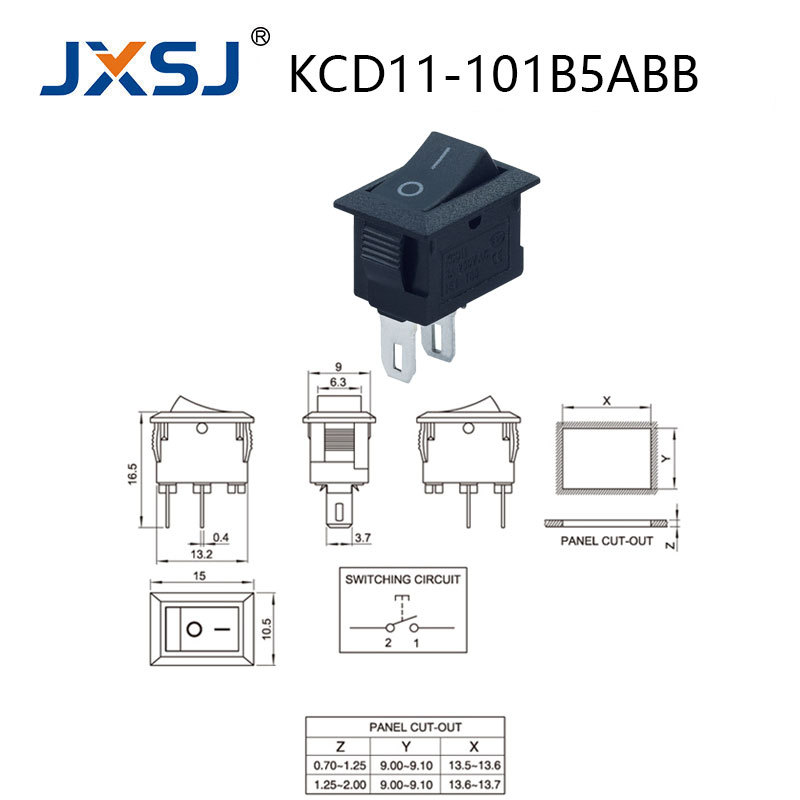

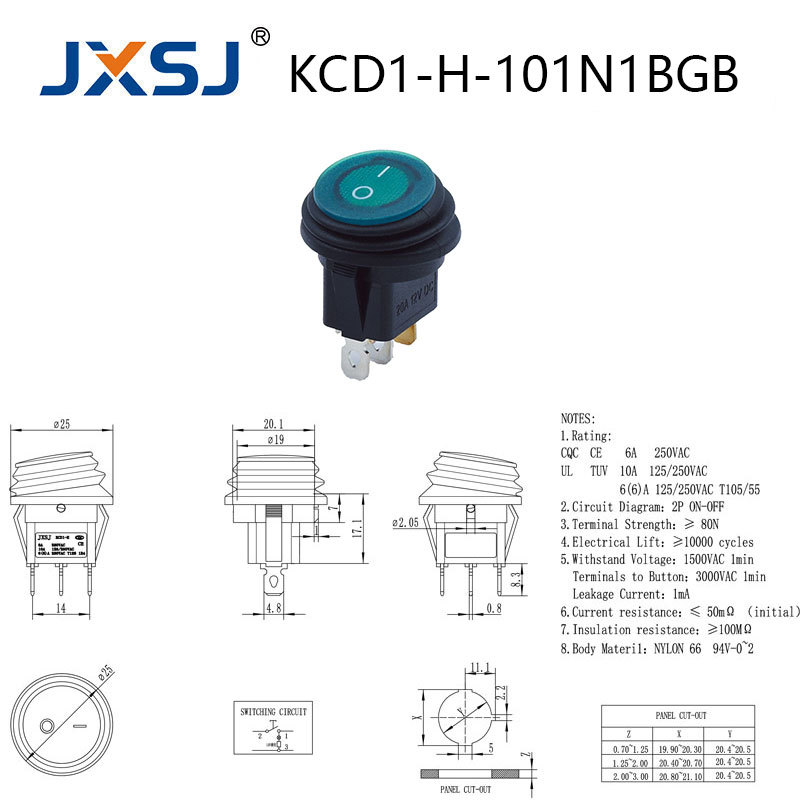

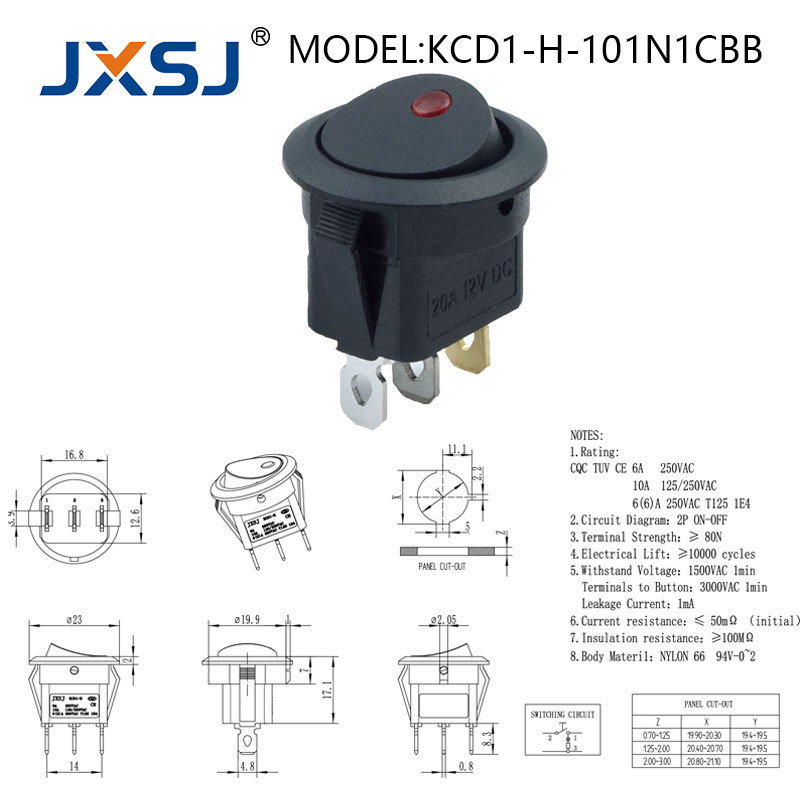

Product Detail Images
Product Description
• Housing material: PA66, flame retardant.
• Rated voltage range: 0-250.
• Electrical and mechanical life: 10,000 cycles.
• Operating temperature: -28~85 ℃.
• Wiring: plug-in terminal or soldering.
• Installation dimensions: 9*13.8.
• Weight approximately 0.005 kg, 1 unit per carton.
