Direct from China - Yiwu/Ningbo

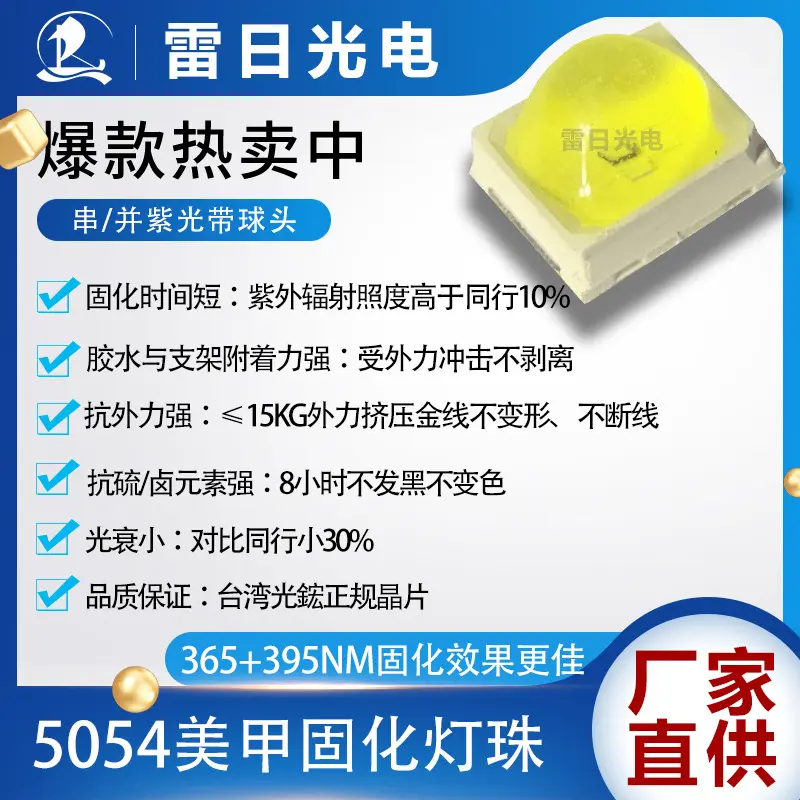

5054 Bead-Top UV LED Chips 365+395nm for Nail Curing Lamps
Add to wishlist
Send to a friend
Logo print, custom packaging, colour... Usually from 500 units.
Minimum Order Quantity (MOQ): 10100
1 Euro pallet (120×80) = 16 pcs (16 cartons), $0.01 per unit, $0.22 in total. One container holds 24 pallets = 384 pcs.
Pallets are not stacked: a half pallet pays a full pallet space and freight. Full pallets lower your freight per unit.
In stock: 598,654,822 pcs
Preparation time: about 2 days after payment (shipping not included)
SKU: KZ-H62BSUX-01
🛡️ Product safety and manufacturer information
- Manufacturer
- Made in China; see EU responsible person.
- EU responsible person
- Kazel Eventagentur
Wilfried-Diekmann-Straße 20b 44536 Lünen
[email protected] - Product identifier
- SKU KZ-H62BSUX
- Safety warnings
- • As an electronic component, use only with a suitable driver circuit; incorrect voltage may damage the chip. • Avoid direct eye and skin exposure to UV light. • Keep away from small children.
📏 Item Details (Single Unit)
- Dimensions (L x W x H)
- 49.00 x 40.00 x 42.00 cm
- Weight
- 0.500 kg
📦 Carton / Logistics Info
- Units per Carton
- 1
- Carton Dimensions
- 49.00 x 40.00 x 42.00 cm
- Carton Weight
- 0.500 kg
- CBM
- 0.0823 m³
Freight and customs costs are calculated automatically at checkout based on the total CBM/weight of your cart.
🔧 Technical Specifications
- Power
- 1
- Dimensions
- 5054
- Chip Brand
- Taiwan Guangheng
- Brand
- Leri
- Color Rendering Index
- 70
- Lead Wire Material
- Alloy Wire
- Bracket Material
- Iron
- Luminous Efficacy
- 43%
- Origin
- Shenzhen
- Imported
- No
- Order No.
- 5054 Ball Head
- Item No.
- 5054 Ball Head-(Promotion)
- Model
- 5054HWCPBG-C3A Series
- Luminous Flux
- None
- Forward Voltage
- 3.6-3.8/7.6-7.8
- Reverse Voltage
- 5
- Electrostatic Discharge Voltage (ESD)
- 1000
- Rated Current
- 0.10/0.20
- Chip Size
- 11mil/13mil+2209
- Phosphor Brand
- Ruibo
- Glue Brand
- Nors
- Viewing Angle
- 90
- Color Tolerance
- None
- Thermal Resistance
- ≤15
- Maximum Allowable Junction Temperature
- 115
- Voltage Temperature Coefficient
- 0.023
- 1000-Hour Standard Aging
- 85
- 6000-Hour Standard Aging
- None
- LM-80 Test Passed
- No
- Color Temperature Range
- 365+395nm
- Correlated Color Temperature
- 365nm+395nm series 7.4-7.6V (11mil+2209), 365nm+395nm parallel 3.6-3.8V (11mil+2209), 365nm+395nm series 7.4-7.6V (13mil+2209), 365nm+395nm parallel 3.6-3.8V (13mil+2209), 365nm+395nm series 7.4-7.6V (15mil+1229), 365nm+395nm parallel 3.6-3.8V (15mil+1229)
- Main Downstream Platforms
- eBay, Amazon, Wish, AliExpress, Independent Website, Lazada
- Main Sales Regions
- Africa, Europe, South America, Southeast Asia, North America, Northeast Asia, Middle East
- Has Authorizable Own Brand
- No
- Cross-Border Export Dedicated Source
- Yes
- UV LED Bead
- Series-Parallel UV Violet SMD LED Bead
- Applicable Scenarios
- /
- Control Method
- /
- Nail Curing LED Bead
- Nail Curing Dedicated 5054 Ball Head
- 5054 Nail LED Bead
- SMD5054 Ball Lens UV LED Bead
Product Detail Images
Product Description
• Size: 5054
• Wavelength: 365+395 nm
• Color rendering index: 70
• Power: 1; forward voltage: 3.6-3.8 / 7.6-7.8 V
• Item weight 0.500 kg, 1 unit per carton
